ParticleModule

Using NytoModule, creating a module automatically updates its version. The underlying principle is that when the metadata of a module is modified, the module indirectly accesses the version instance through the particle kernel and records the relevant information about the modification through the version instance. This allows other particles to update to the latest version through the version instance.

However, this feature is not commonly used, and for the sake of such functionality, there is a sacrifice in performance.

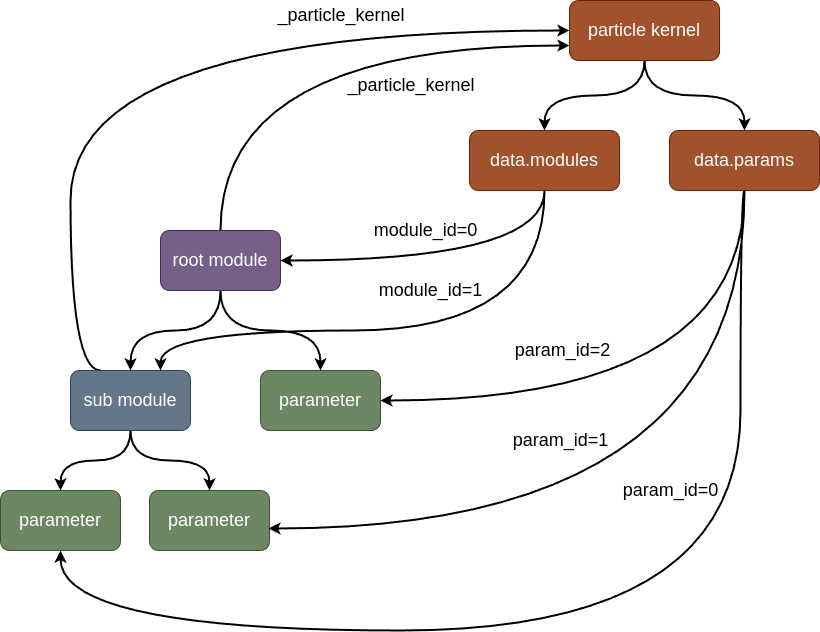

From the particle structure diagram, a circular reference structure can be observed, which can cause memory pressure for programming languages like Python that use garbage collection. We can conduct a simple experiment to observe the process from initializing a particle to reclaiming it in Python:

import nytorch as nyto
import torch
import torch.nn as nn

CNN_COUNTER: int = 0

class CNN(nyto.NytoModule):
    def __init__(self):
        super().__init__()
        self.init()
        ...

    def __del__(self):
        print(f"delete cnn={self.module_id}")

    def __add__(self, *args, **kwargs):
        new_cnn = super().__add__(*args, **kwargs)
        new_cnn.init()
        return new_cnn

    def __mul__(self, *args, **kwargs):
        new_cnn = super().__mul__(*args, **kwargs)
        new_cnn.init()
        return new_cnn

    def init(self):
        global CNN_COUNTER
        CNN_COUNTER += 1
        self.module_id = CNN_COUNTER
        print(f"init cnn={self.module_id}")
    ...

def particle_operation_loop10():
    net = CNN()
    for i in range(10):
        net = 0.5 * net + 10

The result of running the above code:

>>> particle_operation_loop10()
init cnn=1
init cnn=2
init cnn=3
init cnn=4
init cnn=5
init cnn=6
init cnn=7
init cnn=8
init cnn=9
init cnn=10
init cnn=11
init cnn=12
delete cnn=3
delete cnn=4
delete cnn=5
delete cnn=6
delete cnn=7
delete cnn=8
delete cnn=9
delete cnn=10
init cnn=13
init cnn=14
init cnn=15
init cnn=16
init cnn=17
init cnn=18
init cnn=19
init cnn=20
init cnn=21
delete cnn=14
delete cnn=15
delete cnn=16
delete cnn=17
delete cnn=18
delete cnn=19
delete cnn=20
delete cnn=21
delete cnn=1
delete cnn=2
delete cnn=11
delete cnn=12
delete cnn=13

It can be observed that there is a longer cycle from initializing a particle to reclaiming it.

To avoid memory pressure, nytorch provides particle_module.ParticleModule to solve the problem of circular reference.

Model

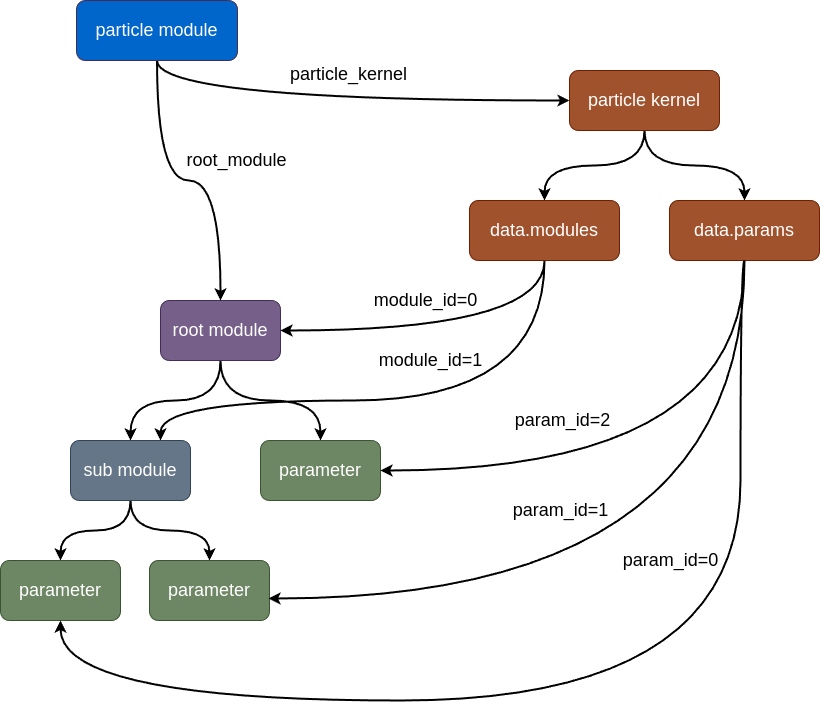

Below is the particle model structure using ParticleModule:

It can be seen that ParticleModule resolves the circular reference problem by clearing the module’s reference to the particle kernel and can restore the reference to the particle kernel at any time.

Below is part of the code for ParticleModule, which shows that ParticleModule is a decorator, and its purpose is to facilitate clearing or restoring the module’s reference to the particle kernel:

class ParticleModule(nn.Module, Particle[PMProduct]):
    def __init__(self, root_module: Tmodule) -> None:
        ...
        super().__init__()
        self.particle_kernel: ParticleKernelImp = root_module._particle_kernel
        self.root_module: Tmodule = root_module
        self.clear_kernel_ref()

    def forward(self, *args, **kwargs):
        return self.root_module(*args, **kwargs)

    def clear_kernel_ref(self) -> None:
        for submodule in self.root_module.modules():
            if isinstance(submodule, NytoModuleBase):
                submodule._particle_kernel = None

    def restore_kernel_ref(self) -> None:
        for submodule in self.root_module.modules():
            if isinstance(submodule, NytoModuleBase):
                submodule._particle_kernel = self.particle_kernel

    ...

Using ParticleModule with a model inherited from NytoModule:

from nytorch import NytoModule
from nytorch.particle_module import ParticleModule
import torch
import torch.nn as nn
import torch.nn.functional as F

class MyModel(NytoModule):
    def __init__(self, in_feat: int, h_size: int, out_feat: int):
        super().__init__()
        self.layer1 = nn.Linear(in_feat, h_size)
        self.layer2 = nn.Linear(h_size, out_feat)

    def forward(self, inpts):
        h_out = F.relu(self.layer1(inpts))
        return self.layer2(h_out)


net = MyModel(4, 12 ,3)
net = ParticleModule(net)

Using it is similar to using a regular torch.nn.Module:

>>> net(torch.randn(2, 4))
tensor([[ 0.3108, -0.0365,  0.1589],
        [ 0.2627,  0.2605, -0.0809]], grad_fn=<AddmmBackward0>)

>>> list(net.parameters())
[Parameter containing:
 tensor([[ 0.3434,  0.1136, -0.0762, -0.3682],
         [-0.4386, -0.2468,  0.0393, -0.4668],
         [ 0.2795,  0.0283,  0.0952,  0.4143],
 ...
 Parameter containing:
 tensor([0.0306, 0.0591, 0.2293], requires_grad=True)]

You can access the original model through the root_module attribute:

>>> net.root_module
MyModel(
  (layer1): Linear(in_features=4, out_features=12, bias=True)
  (layer2): Linear(in_features=12, out_features=3, bias=True)
)

However, it is recommended not to perform any operations on the original model that may trigger a version update, as the reference to the particle kernel has been cleared. If necessary, you can restore the reference to the particle kernel using the restore_kernel_ref method and clear the reference using the clear_kernel_ref method:

model = ParticleModule(MyNytoModule())
model_clone = model.clone()

# version update
model.restore_kernel_ref()
model.root_module.data_embed = nn.Embedding(30, 8)
model.clear_kernel_ref()

# synchronization
model_clone.restore_kernel_ref()
model_clone.root_module.touch()
model_clone.clear_kernel_ref()

Alternatively, use GetNytoModule to simplify:

from nytorch import GetNytoModule

model = ParticleModule(MyNytoModule())
model_clone = model.clone()

# version update
with GetNytoModule(model) as my_nyto_module:
    my_nyto_module.data_embed = nn.Embedding(30, 8)

# synchronization
with GetNytoModule(model_clone) as my_nyto_module_clone:
    my_nyto_module_clone.touch()

Particle operation

Although some operations require a reference to the particle kernel before being performed, particle operations do not require this hassle.

ParticleModule supports all particle operations of NytoModule:

>>> net + 1
ParticleModule(
  (root_module): MyModel(
    (layer1): Linear(in_features=4, out_features=12, bias=True)
    (layer2): Linear(in_features=12, out_features=3, bias=True)
  )
)

>>> 2 * net
ParticleModule(
  (root_module): MyModel(
   (layer1): Linear(in_features=4, out_features=12, bias=True)
    (layer2): Linear(in_features=12, out_features=3, bias=True)
  )
)

In NytoModule, this direct particle operation is not very efficient for computations involving a large number of intermediate variables. Therefore, we first call product() to transform NytoModule into ParamProduct before performing operations. When NytoModule is needed again, it is transformed back. This helps to reduce unnecessary transformations.

Similarly, in ParticleModule, we perform a similar operation where we also use product() for the transformation. However, the resulting object is not ParamProduct but PMProduct:

>>> net.product()
<nytorch.particle_module.PMProduct at 0x7f9aec1b8730>

PMProduct serves as a decorator for ParamProduct, facilitating the transformation of the object converted by ParamProduct from NytoModule to ParticleModule:

from nytorch.module import ParamProduct

product1 = net.product()

>>> isinstance(product1.product, ParamProduct)
True

>>> isinstance(product1.module(), ParticleModule)
True

And PMProduct supports all particle operations of ParamProduct:

product2 = product1 + 1

product3 = 2 * product2

product4 = product3.unary_operator(lambda param, config: 2*param + 10)

product5 = product4.binary_operator(product3,
                                    lambda param1, param2, config: param1+param2)

product6 = product5.randn()

Additionally, it is possible to transform from PMProduct back to ParticleModule.:

>>> product1.module()
ParticleModule(
  (root_module): MyModel(
    (layer1): Linear(in_features=4, out_features=12, bias=True)
    (layer2): Linear(in_features=12, out_features=3, bias=True)
  )
)

Garbage Collection Cycles

Previously, we mentioned that if ParticleModule is not used, it will result in a circular reference structure for particles, which will cause longer memory recycling periods. But how much of a difference does this make? Let’s demonstrate the difference using the example provided earlier.

Here are the results without using ParticleModule:

init cnn=1
init cnn=2
init cnn=3
init cnn=4
init cnn=5
init cnn=6
init cnn=7
init cnn=8
init cnn=9
init cnn=10
init cnn=11
init cnn=12
delete cnn=3
delete cnn=4
delete cnn=5
delete cnn=6
delete cnn=7
delete cnn=8
delete cnn=9
delete cnn=10
init cnn=13
init cnn=14
init cnn=15
init cnn=16
init cnn=17
init cnn=18
init cnn=19
init cnn=20
init cnn=21
delete cnn=14
delete cnn=15
delete cnn=16
delete cnn=17
delete cnn=18
delete cnn=19
delete cnn=20
delete cnn=21
delete cnn=1
delete cnn=2
delete cnn=11
delete cnn=12
delete cnn=13

And here are the results using ParticleModule:

init cnn=1
init cnn=2
init cnn=3
delete cnn=2
delete cnn=1
init cnn=4
init cnn=5
delete cnn=4
delete cnn=3
init cnn=6
init cnn=7
delete cnn=6
delete cnn=5
init cnn=8
init cnn=9
delete cnn=8
delete cnn=7
init cnn=10
init cnn=11
delete cnn=10
delete cnn=9
init cnn=12
init cnn=13
delete cnn=12
delete cnn=11
init cnn=14
init cnn=15
delete cnn=14
delete cnn=13
init cnn=16
init cnn=17
delete cnn=16
delete cnn=15
init cnn=18
init cnn=19
delete cnn=18
delete cnn=17
init cnn=20
init cnn=21
delete cnn=20
delete cnn=19
delete cnn=21

We can see that the model using ParticleModule has shorter recycling periods, so using ParticleModule is clearly worthwhile. Below are the implementations corresponding to the two results.

Without using ParticleModule:

import nytorch as nyto
import torch.nn as nn
from nytorch.particle_module import ParticleModule

CNN_COUNTER: int = 0

class CNN(nyto.NytoModule):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Sequential(nn.Conv2d(in_channels = 1,
                                             out_channels = 16,
                                             kernel_size = 5,
                                             stride = 1,
                                             padding = 2),
                                   nn.ReLU(),
                                   nn.MaxPool2d(kernel_size = 2))
        self.conv2 = nn.Sequential(nn.Conv2d(16, 32, 5, 1, 2),
                                   nn.ReLU(),
                                   nn.MaxPool2d(2))
        self.output_layer = nn.Linear(32*7*7, 10)

        self.init()

    def __del__(self):
        print(f"delete cnn={self.module_id}")

    def __add__(self, *args, **kwargs):
        new_cnn = super().__add__(*args, **kwargs)
        new_cnn.init()
        return new_cnn

    def __mul__(self, *args, **kwargs):
        new_cnn = super().__mul__(*args, **kwargs)
        new_cnn.init()
        return new_cnn

    def init(self):
        global CNN_COUNTER
        CNN_COUNTER += 1
        self.module_id = CNN_COUNTER
        print(f"init cnn={self.module_id}")

    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = x.view(x.size(0), -1)
        output = self.output_layer(x)
        return output, x

def particle_operation_loop10():
    net = CNN()
    for i in range(10):
        net = 0.5 * net + 10

particle_operation_loop10()

Using ParticleModule:

import nytorch as nyto
import torch.nn as nn
from nytorch.mtype import ROOT_MODULE_ID
from nytorch.particle_module import ParticleModule, PMProduct

CNN_COUNTER: int = 0

class CNN(nyto.NytoModule):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Sequential(nn.Conv2d(in_channels = 1,
                                             out_channels = 16,
                                             kernel_size = 5,
                                             stride = 1,
                                             padding = 2),
                                   nn.ReLU(),
                                   nn.MaxPool2d(kernel_size = 2))
        self.conv2 = nn.Sequential(nn.Conv2d(16, 32, 5, 1, 2),
                                   nn.ReLU(),
                                   nn.MaxPool2d(2))
        self.output_layer = nn.Linear(32*7*7, 10)

    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = x.view(x.size(0), -1)
        output = self.output_layer(x)
        return output, x

class MyPMProduct(PMProduct):
    @classmethod
    def from_ParamProduct(cls, product: 'ParamProduct') -> PMProduct:
        return MyPMProduct(product.kernel,
                           product.module_id,
                           product.params)

    def particle(self) -> 'MyParticleModule':
        return MyParticleModule(self.product.module())

class MyParticleModule(ParticleModule):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)

        global CNN_COUNTER
        CNN_COUNTER += 1
        self.module_id = CNN_COUNTER
        print(f"init cnn={self.module_id}")

    def __del__(self):
        print(f"delete cnn={self.module_id}")

    def product(self) -> MyPMProduct:
        return MyPMProduct(self.particle_kernel,
                           ROOT_MODULE_ID,
                           self.particle_kernel.data.params)

def particle_operation_loop10():
    net = MyParticleModule(CNN())
    for i in range(10):
        net = 0.5 * net + 10

particle_operation_loop10()
